| Model ID |
|---|

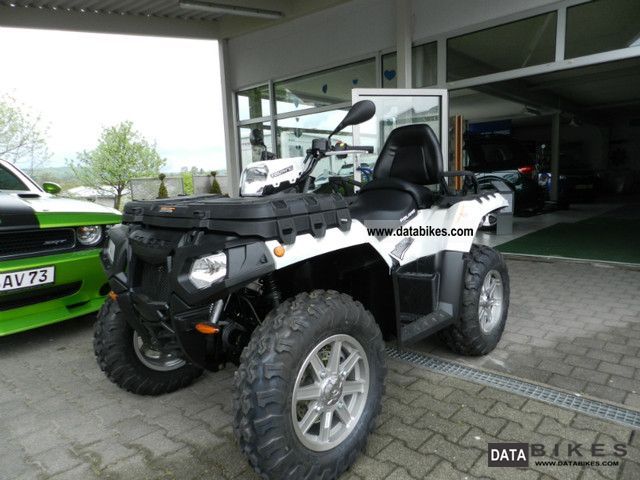

| Make and Model | Polaris Sportsman Touring 850 EPS + HaO LOF approval |
| Year | 2011 |
| Category | Quad |
| TECHNICAL SPECIFICATION |
|---|
| Engine Capacity | 850 cm³ |
| Engine Power | 58 kW (79 PS(Hp)) |
| Fuel Type | Petrol |
| Gearbox | Automatic transmission |
| Fairings | Full Plastics, ATV type |
| Description |
|---|
Model 2012!
Engine Type SOHC 4-stroke 2-cylinder
Displacement 850cc
Fuel system Electronic fuel injection
Cooling and Flssigkeitsgekhlt
Transmission Automatic PVT P / R / N / L / H; propshaft
Selectable four-wheel drive system
Engine brake / Hill Descent Control Standard / Standard
Suspension Front Dual A-Arm 9 \Rear suspension Independent suspension IRS 10.25 \Brakes, front / rear hydraulic disc brakes
Parking brake parking position in the gear / handbrake Lockable
Tires, front / Model 26 x 8-14; Maxxis
Rear tire / Model 26 x 10-14; Maxxis
Aluminum rims
Wheelbase 57 \Dry weight 362 kg
Vehicle Dimensions (LxWxH) 86.5 x 47.6 x 58.25 \Ground Clearance 11.25 \Seat Height 35.75 \Fuel tank capacity gal 5:25 (19.9 L)
Rack capacity, front / rear 120 lb (55 kg) / 240 lb (110 kg)
Load capacity 1.500 lb (261 kg)
Maximum towing capacity
- 1.500 lb (680.4 kg) Trailer Hitch / Type Standard / 1.25 \Fastening System Lock & Ride
Instruments Analog speedometer, digital odometer,
Speed indicator, two day-Odometer,
Driving time display, Clock, Service Indicator, Diagnostic
Indicator, gear position indicator, fuel gauge, indicator AWD,
Temperature / battery warning indicator, 12V power outlet
Street legal LOF
|
